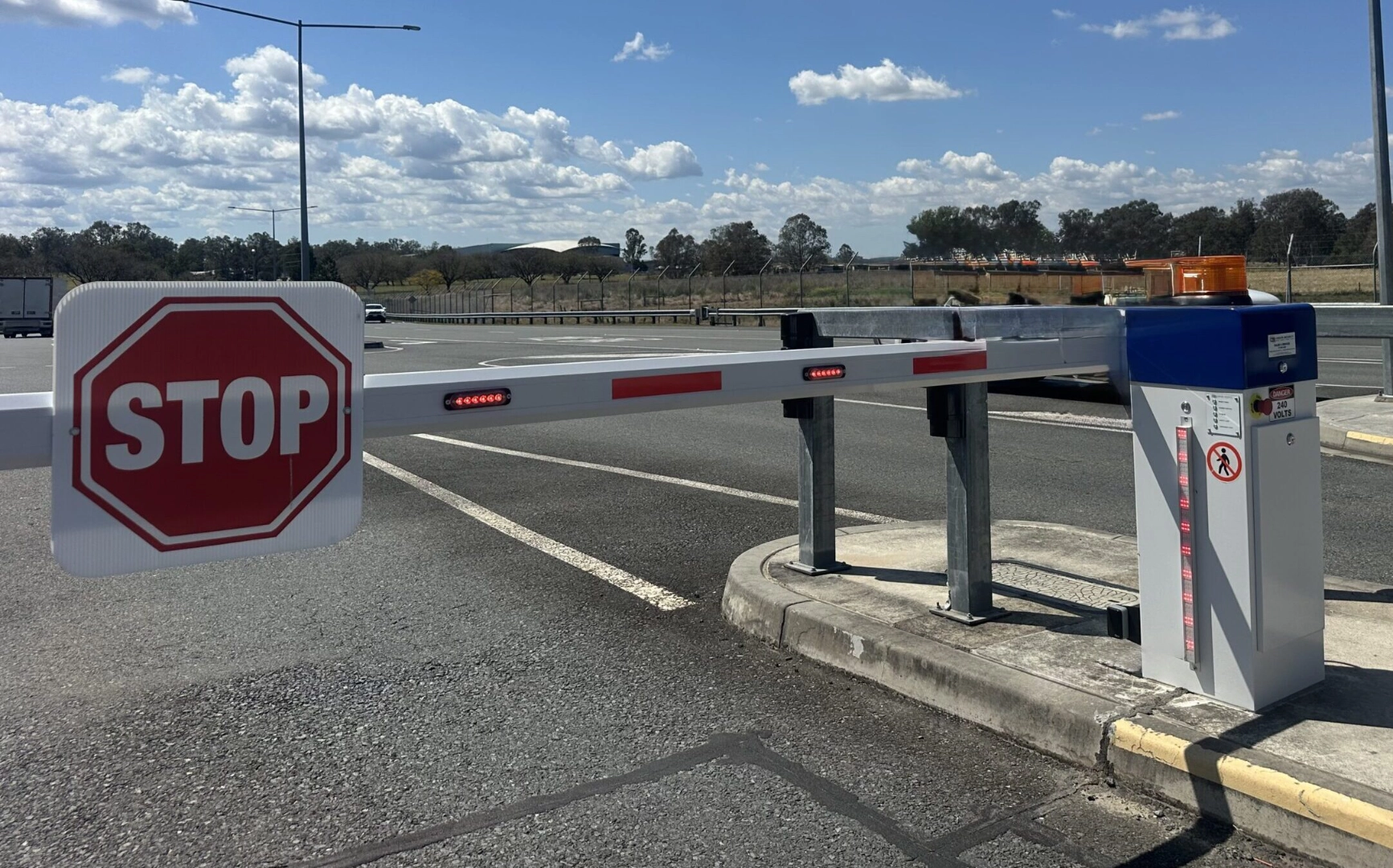

Boom Gates Gold Coast
Built for Queensland. Engineered to Last. Ready to Install.
Our Gold Coast boom gates are built specifically for Queensland conditions, combining brushless servo drive technology, intelligent control and comprehensive safety in one complete, ready-to-install solution.
Why Choose a Boom Gate?
Boom gates give you fast, controlled vehicle access without the wait. Sliding and swing gates need clearance to move and time to complete a cycle, while a boom arm lifts and lowers in seconds and keeps queues moving even on a tight footprint.
That makes Gold Coast boom gates a sensible choice for car parks, residential complexes, industrial facilities and secure sites. Wherever vehicles come and go all day, a boom gate handles the volume without holding anyone up.
Maintain smooth traffic flow
Improve site safety
Prevent unauthorised entry
Enhance overall security
Why Choose Create Security’s Gold Coast Boom Gates?
Create Security has spent more than 35 years working on boom gates on the Gold Coast and surrounding areas. We have installed, serviced and repaired a wide range of brands, which has given us a clear view of what survives the heat, the storms and the traffic volumes in Queensland.
The Australian commercial market has long run on imported units from European and Asian manufacturers, resold locally with little change. Those boom gates meet an overseas specification written for overseas conditions, so the environment they were built for looks nothing like a Gold Coast car park in January.
Our Gold Coast boom gates came out of that experience. Create Security wrote its own specification around Queensland conditions, and every component has to justify its place on local performance rather than on an imported spec sheet.
Engineered for Queensland’s Conditions
Heat, moisture and vermin ingress can all affect boom gate reliability and component life. The CS Maxima is engineered with these Queensland conditions in mind, from high temperatures, intense UV, heavy storms and high humidity to coastal exposure and the challenges posed by ants, geckos and other vermin.
Brushless Servo Motor Technology
At the heart of the CS Maxima is a 50W brushless 24VDC servo motor, providing precise control, efficient operation, and dependable performance. Key performance features include:
- PWM variable-frequency servo technology for precise, controlled operation
- Integrated angle encoder for digital servo control
- 100% duty cycle to support continuous operation
- Manufacturer-rated 10-million-cycle MTBF for long-term reliability
Engineered for Reliability
- Soft start/stop control for smooth, controlled operation
- Drive control system maintains consistent speed and torque in varying conditions
- IP64-rated sealed electronics cabinet protects against dust, rain, and humidity
- Corrosion-resistant finish for UV and coastal environments
- Vermin ingress protection to help protect sensitive electrical components
- Long-life, industrial-grade components designed for demanding sites
Connectivity & Access Control Integration
Designed to adapt to changing site requirements, the CS Maxima integrates with a range of access control technologies and provides real-time visibility, monitoring and programmable automation.
Connectivity Features

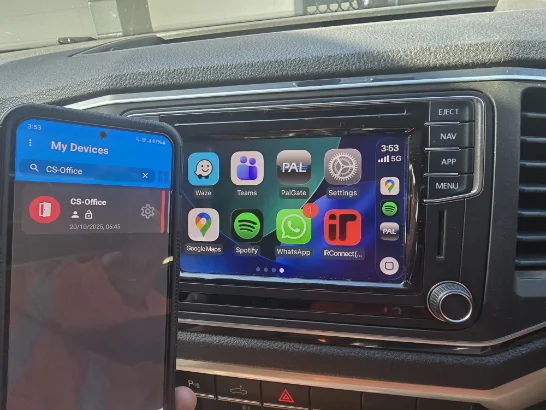

- Smartphone integration (Apple CarPlay + Android Auto) — operate or monitor the gate directly from your vehicle or device
- Access logging & reporting — track all entries and exits for improved security and management
- Universal access control compatibility — supports remotes, keypads, proximity cards, intercoms, and existing systems
- Programmable automation — schedule opening and closing times to suit site operations
Safety and Compliance
Ask anyone who has spent a few decades installing and servicing boom gates what becomes of the safety devices sitting on a quote as optional line items. They get trimmed to bring the number down, and the follow-up order to fit them properly rarely gets placed. We have seen enough sites like that to stop quoting safety separately in the first place.
We build the safety devices in from the start, so our Gold Coast car park boom gates protect vehicles, pedestrians and everyone else moving through the site from day one. The standard inclusions support Work Health and Safety and Disability Discrimination Act requirements, which keeps compliance part of the original scope instead of a later upgrade.
Standard Safety Features
Amber Warning Light
For clear visual indication during operation
Red/green status LEDs
To signal open and closed positions
Audible warning alarm
To alert pedestrians and drivers
Emergency stop button
For immediate shutdown in the event of an incident
Manual Release
For safe operation during power loss or overrides
In-ground vehicle detection loops
To prevent closing on vehicles
Photoelectric safety beams
That stop or reverse the arm if movement is detected
Adjustable opening and closing speeds
To suit site conditions and reduce mechanical wear
Power & Energy Efficiency
CS Maxima uses energy-efficient technology to reduce operating costs and minimise environmental impact without compromising performance or reliability.
Energy-efficient LED boom lighting
Lightweight aluminium boom arms (fully recyclable)
Spring-balanced mechanism for reduced motor strain
Demand-based activation via in-ground loops and PE beams
Long-life component selection designed to support reliability and reduce unnecessary replacement
Built-In Diagnostics. Minimise Downtime. Lower Operating Costs.
Our Gold Coast automatic boom gates feature live, built-in diagnostics that monitor the system in real time and report faults as they happen. The diagnostics identify where the problem starts, including whether it sits with the gate or with an integrated system such as access control.
You know which technician to call before you dial. No more paying someone to turn up, poke around for an hour and tell you the gate is fine and the reader is the problem. The fault gets fixed on the first visit, the entrance reopens sooner, and the running cost of the gate stays down over the years you own it.
That visibility is what separates our Gold Coast boom gates from the rest. Maintenance runs on a schedule instead of a crisis, and the gate keeps working the way it was meant to.
Designed for a Wide Range of Applications
The CS Maxima is suited to vehicle access applications across a wide range of sites and environments:
- Car parks & shopping centres
- Apartment complexes & gated communities
- Retirement villages
- Industrial facilities & warehouses
- Schools, universities & education campuses
- Hospitals & health precincts
- Hotels, resorts & caravan parks
- Transport & construction sites
- Government & secure facilities
- Rural & remote properties
Solar Powered Operation
The CS Maxima Boom Gate platform can also be configured for reliable solar-powered operation where mains power is unavailable or impractical.
Designed for regional, rural, remote and off-grid environments, solar powered CS Maxima systems provide reliable ongoing vehicle access control with the same performance, safety, and control functionality as standard mains-powered systems.
Systems incorporate integrated solar charging and battery storage to support reliable ongoing operation without permanent electrical infrastructure.
Boom Arm Options
Construction & Enhancements
- Lightweight aluminium boom arms — reduce motor load and support smooth, efficient operation
- Optional LED boom arm lighting — red/green stop-go indication for improved visibility
Arm Types
- Telescopic boom arm — up to 7.3m

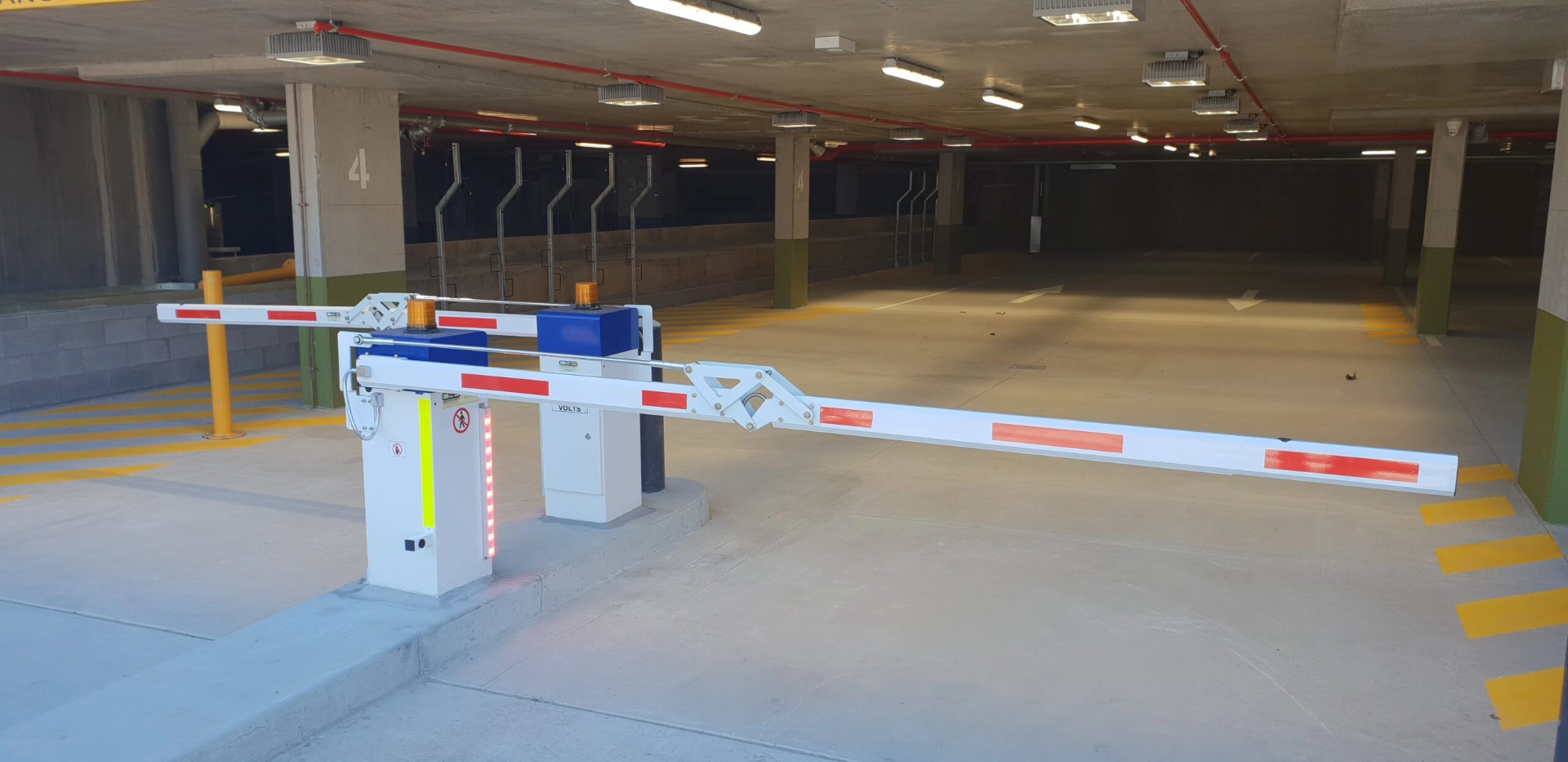

Flexible reach for wide lanes and multi-lane access control. - Folding boom arm (180°) — up to 5.5m
Designed for low-ceiling or underground car parks, with the folding configuration also helping to prevent vehicle tailgating.
Our Other Boom Gate Solutions
What clients are saying about our boom gates
Create Security is Proud to Work With
Ready to Secure Your Site?
The CS Maxima brings together reliability, performance, safety and integrated technology in a ready-to-install boom gate built specifically for Queensland conditions.
Get in touch with Create Security to request a quote or speak with a specialist today.
