Boom Gates Brisbane
Built for Queensland. Engineered to Last. Ready to Install.

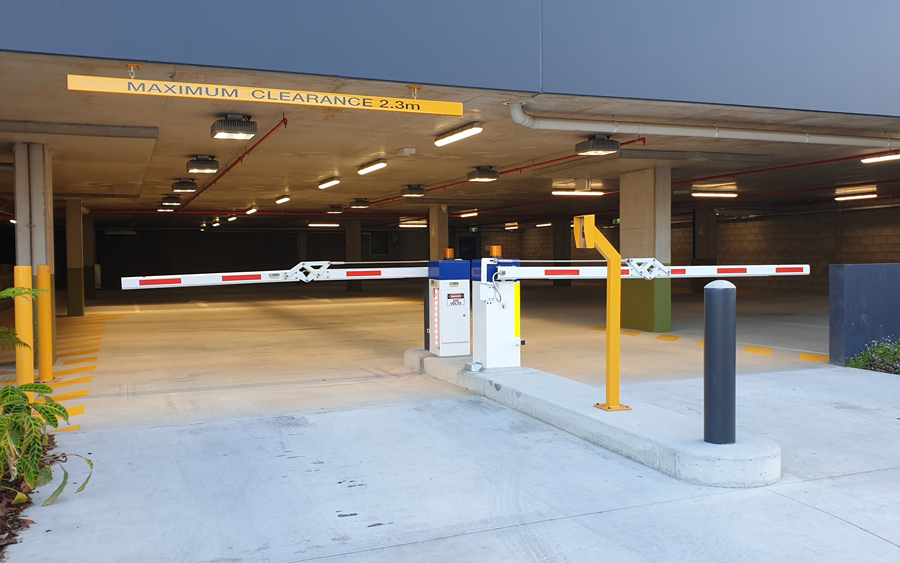

Our Brisbane boom gates are an automatic boom gate built specifically for Queensland conditions, combining brushless servo drive technology, intelligent control and comprehensive safety in one complete, ready-to-install solution.
Why Choose a Boom Gate?
A boom gate gives you fast, efficient control over vehicle access. Sliding and swing gates need clearance to move and time to complete that movement, while a boom arm lifts and lowers in seconds inside a far smaller footprint.
The difference shows up when vehicles start banking up at the entry. Shopping centre car parks, gated residential complexes, industrial yards and secure compounds all use boom gates for that reason. Traffic keeps moving, and every vehicle still gets checked on the way through.
Maintain smooth traffic flow
Improve site safety
Prevent unauthorised entry
Enhance overall security
Why Choose Create Security’s Brisbane Boom Gates?
We have worked with boom gates for more than 35 years, installing, servicing and repairing a wide range of brands in Brisbane and nearby areas. That work has shown us how different systems hold up once Queensland conditions and constant daily cycling start taking their toll.
Resold here by local distributors, imported units from European and Asian manufacturers have long dominated the Australian commercial market. Those products meet an overseas manufacturer’s specification rather than the environmental and operating demands of a site in Queensland.
That gap is where our Brisbane automatic boom gates started. Rather than accept whatever specification came in the container, we sat down and wrote our own around the sites we service every week: the heat, the storms, the dust and the traffic volumes our clients deal with year-round.
Engineered for Queensland’s Conditions
Heat, moisture and vermin ingress can all affect boom gate reliability and component life. The CS Maxima is engineered with these Queensland conditions in mind, from high temperatures, intense UV, heavy storms and high humidity to coastal exposure and the challenges posed by ants, geckos and other vermin.
Brushless Servo Motor Technology
At the heart of the CS Maxima is a 50W brushless 24VDC servo motor, providing precise control, efficient operation, and dependable performance. Key performance features include:
- PWM variable-frequency servo technology for precise, controlled operation
- Integrated angle encoder for digital servo control
- 100% duty cycle to support continuous operation
- Manufacturer-rated 10-million-cycle MTBF for long-term reliability
Engineered for Reliability
- Soft start/stop control for smooth, controlled operation
- Drive control system maintains consistent speed and torque in varying conditions
- IP64-rated sealed electronics cabinet protects against dust, rain, and humidity
- Corrosion-resistant finish for UV and coastal environments
- Vermin ingress protection to help protect sensitive electrical components
- Long-life, industrial-grade components designed for demanding sites
Connectivity & Access Control Integration
Designed to adapt to changing site requirements, the CS Maxima integrates with a range of access control technologies and provides real-time visibility, monitoring and programmable automation.
Connectivity Features
- Smartphone integration (Apple CarPlay + Android Auto) — operate or monitor the gate directly from your vehicle or device
- Access logging & reporting — track all entries and exits for improved security and management
- Universal access control compatibility — supports remotes, keypads, proximity cards, intercoms, and existing systems
- Programmable automation — schedule opening and closing times to suit site operations
Safety and Compliance
Safety loops, photo beams and warning lights are fitted to every gate we supply as part of the standard build. Imported gates often arrive without them, because the specification they were built to was written for a different market.
Our Brisbane car park boom gates arrive complete. Safety features come as standard, protecting vehicles, pedestrians and everyone else moving through the site, and they support Work Health & Safety and Disability Discrimination Act requirements from the day the gate goes in.
Standard Safety Features
Amber Warning Light
For clear visual indication during operation
Red/green status LEDs
To signal open and closed positions
Audible warning alarm
To alert pedestrians and drivers
Emergency stop button
For immediate shutdown in the event of an incident
Manual Release
For safe operation during power loss or overrides
In-ground vehicle detection loops
To prevent closing on vehicles
Photoelectric safety beams
That stop or reverse the arm if movement is detected
Adjustable opening and closing speeds
To suit site conditions and reduce mechanical wear
Power & Energy Efficiency
CS Maxima uses energy-efficient technology to reduce operating costs and minimise environmental impact without compromising performance or reliability.
Energy-efficient LED boom lighting
Lightweight aluminium boom arms (fully recyclable)
Spring-balanced mechanism for reduced motor strain
Demand-based activation via in-ground loops and PE beams
Long-life component selection designed to support reliability and reduce unnecessary replacement
Built-In Diagnostics. Minimise Downtime. Lower Operating Costs.
Live, built-in diagnostics come standard on our boom gates, monitoring the system in real time and flagging faults as they happen. The system also identifies where a fault originates, showing whether the problem sits with the boom gate itself or with an integrated system such as access control.
Knowing that before anyone books a technician saves a wasted call-out. You send the gate installer or the access control provider, whichever the fault actually sits with, and the arm is back in service the same visit rather than after two. Our Brisbane boom gates give you that information up front, which keeps servicing costs down and the site running.
Designed for a Wide Range of Applications
The CS Maxima is suited to vehicle access applications across a wide range of sites and environments:
- Car parks & shopping centres
- Apartment complexes & gated communities
- Retirement villages
- Industrial facilities & warehouses
- Schools, universities & education campuses
- Hospitals & health precincts
- Hotels, resorts & caravan parks
- Transport & construction sites
- Government & secure facilities
- Rural & remote properties
Solar Powered Operation

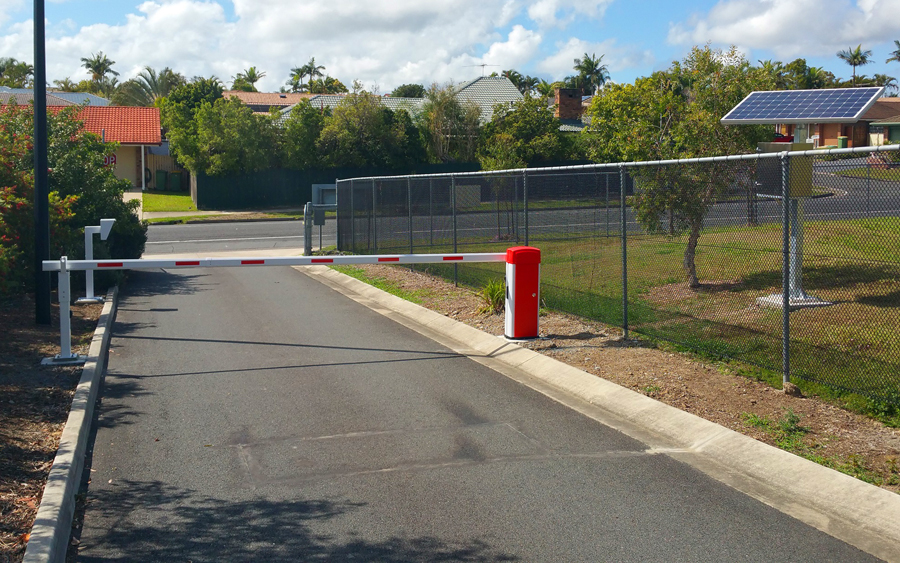

The CS Maxima Boom Gate platform can also be configured for reliable solar-powered operation where mains power is unavailable or impractical.
Designed for regional, rural, remote and off-grid environments, solar powered CS Maxima systems provide reliable ongoing vehicle access control with the same performance, safety, and control functionality as standard mains-powered systems.
Systems incorporate integrated solar charging and battery storage to support reliable ongoing operation without permanent electrical infrastructure.
Boom Arm Options
Construction & Enhancements
- Lightweight aluminium boom arms — reduce motor load and support smooth, efficient operation
- Optional LED boom arm lighting — red/green stop-go indication for improved visibility
Arm Types
- Telescopic boom arm — up to 7.3m
Flexible reach for wide lanes and multi-lane access control. - Folding boom arm (180°) — up to 5.5m
Designed for low-ceiling or underground car parks, with the folding configuration also helping to prevent vehicle tailgating.
Our Other Boom Gate Solutions
What clients are saying about our boom gates
Create Security is Proud to Work With
Ready to Secure Your Site?
The CS Maxima brings together reliability, performance, safety and integrated technology in a ready-to-install boom gate built specifically for Queensland conditions.
Get in touch with Create Security to request a quote or speak with a specialist today.
